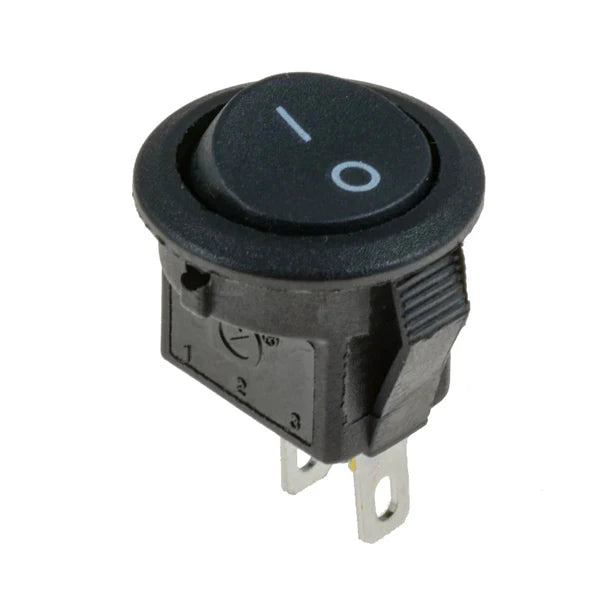

2-Pin Round Rocker Switch (ON/OFF) - 15mm SPST | ATMOSFÆR ENGINEERING

Technical Specifications:

• Switch Type: SPST (Single Pole Single Throw)
• Positions: 2-position (ON/OFF)
• Contact Configuration: 2-pin
• Rated Current: 3A @ 250V AC, 6A @ 125V AC
• DC Rating: 6A @ 125V DC (typical)
• Contact Material: Conductive metal
• Terminal Type: Quick-connect spade terminals (no soldering required)
• Mounting Hole Diameter: 15mm
• Panel Thickness: Up to 5mm (typical)
• Mounting Type: Snap-in / press-fit
• Body Material: Durable ABS plastic
• Color: Black
• Switch Action: Maintained (stays in position)
• Electrical Life: 10,000+ cycles
• Mechanical Life: 50,000+ cycles
• Operating Temperature: -25°C to +85°C

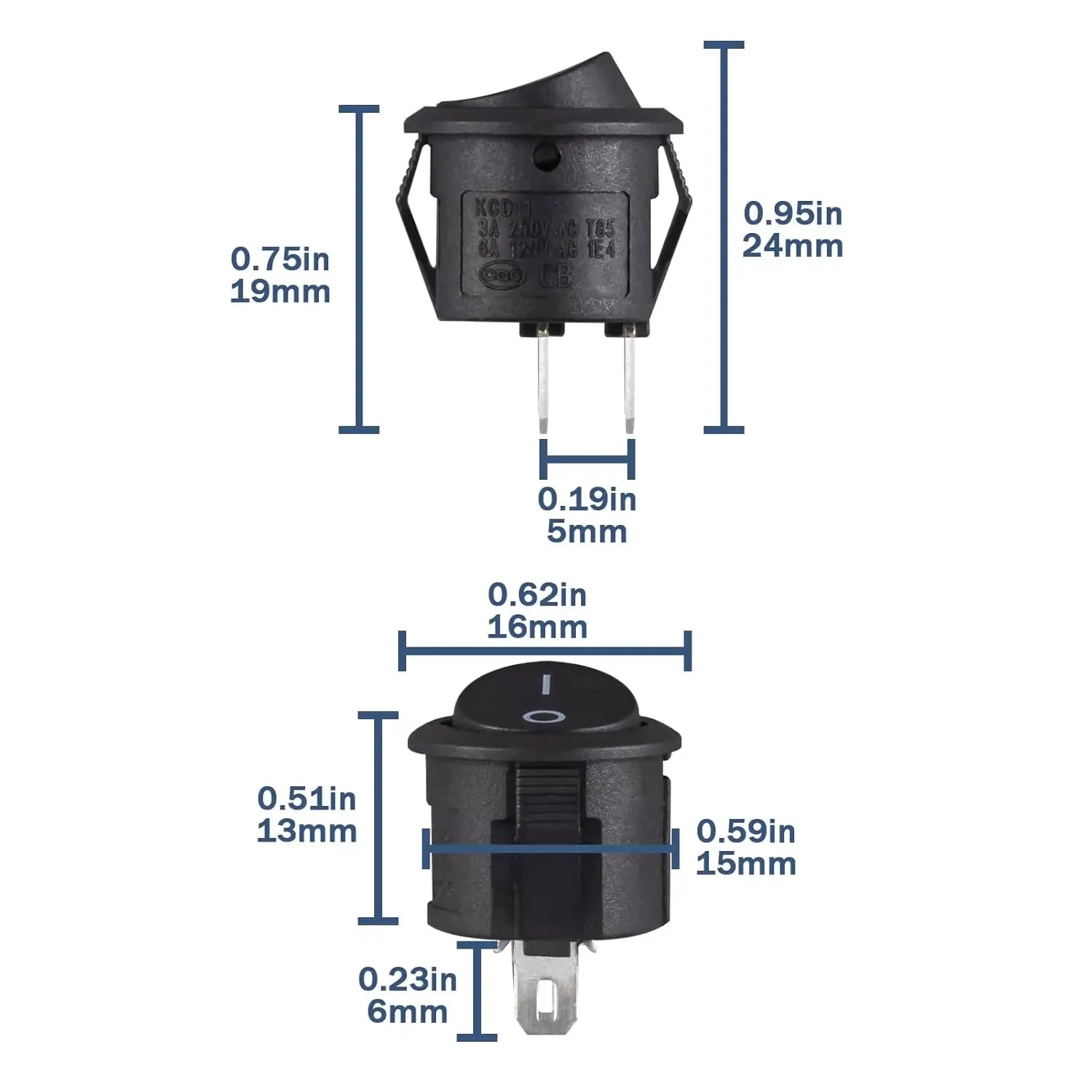

Dimensions:

• Mounting Hole: 15mm diameter
• Body Diameter: 16mm (front face)
• Depth Behind Panel: 17mm
